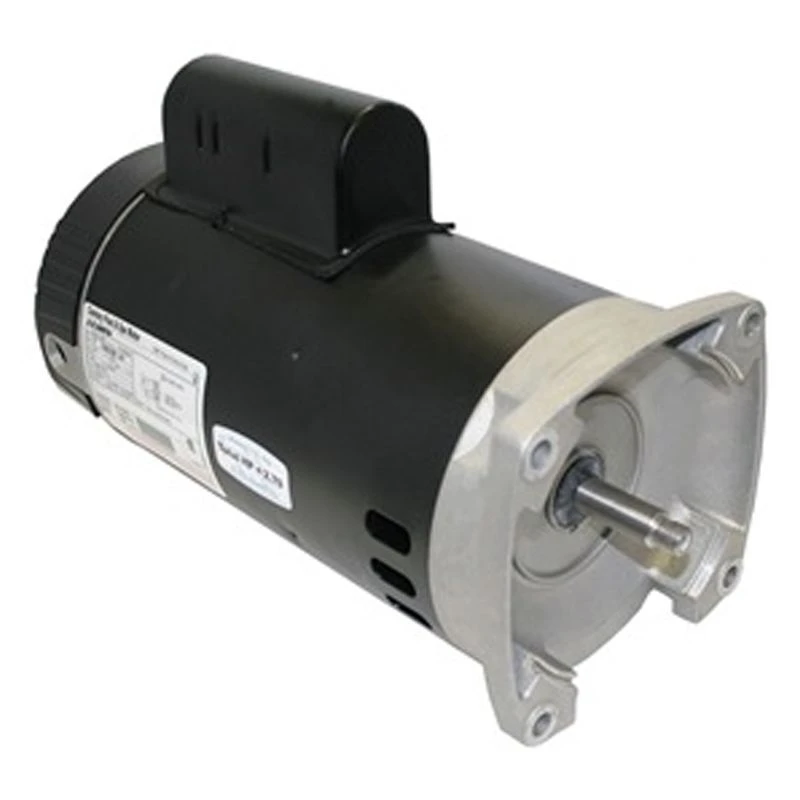

HSQ1102 TriStar Pool Pump Motor 56Y Frame 1 HP Square Flange 115/230V

Original price was: $331.00.Current price is: $96.99.

CAN NOT BE SOLD, SHIPPED TO OR INSTALLED IN THE STATE OF CALIFORNIA
A.O. Smith Part Number HSQ1102
Replaces Hayward part number SP3210Z1BE
1 HP – Full Rated
Service Factor: 1.85
56Y Frame
115V/208-230V
15.0/8.8-7.5 amps
Square Flange (Face)
Threaded Shaft
Capacitor start
All copper windings
Automatic thermal protection
Stainless steel threaded shaft
Sealed ball bearings
Requires SPX3200SA Shaft Seal – sold separately
Cross Reference: SP3210Z1BE, SP3210Z1BER, SPX3210Z1BER

Quality You Can Count On

Multiple payment options for secure shopping with SSL

Shop the Best Quality Online

Buy with Confidence, Get Quality

The AO Smith HSQ1102 TriStar Pool Pump Motor is a square flange style motor with a 56Y Frame and is a 1 Horsepower Motor. Square Flange motors have a square “face” where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.

The HSQ1102 motor replaces Hayward part number SP3210Z1BE.

Manufacturer	AO Smith
Technical Specs	Horsepower: 1 HPService Factor: 1.85Voltage: 115/208-230Amperage: 15.0/8.8-7.5Frame: 56YRPM: Single speed – 3450 RPM
SKU	AOS-60-2710
Manufacturer Part #	HSQ1102
