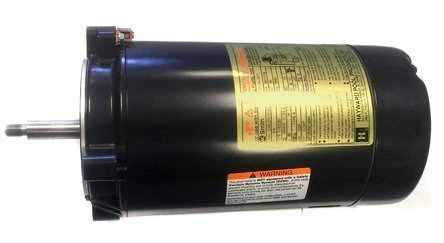

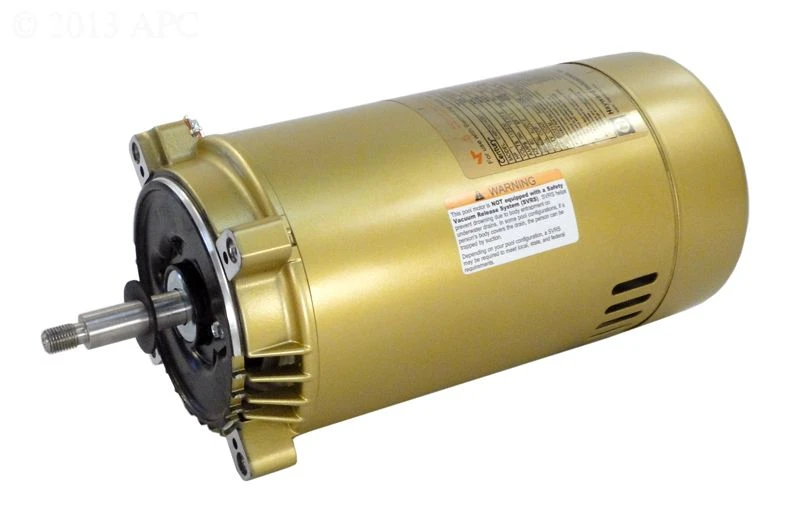

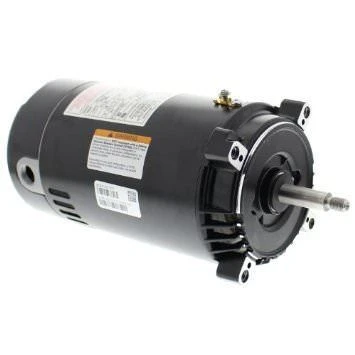

Hayward SPX1607Z1M Pool Pump Motor 1 HP 56J Frame 115/230V

Original price was: $344.99.Current price is: $99.99.

Hayward part number SPX1607Z1M
Color may vary between black or gold
1 HP
56J Frame
56C Face Mount
Threaded Shaft
115 / 230 Volt
Capacitor Start
Automatic Overload Protection
Non-Reversible CCW
Stainless Steel Shaft
For Hayward Super Pump, Super II and Max-Flo
Shaft Seals, Gaskets and other parts sold separately
For Super Pumps use shaft seal SPX1600Z2 or Go-Kit 3
For Super II use shaft seal SPX1600Z2 or Go-Kit 2
For Max-Flo use shaft seal SPX1600Z2 or Go-Kit 1

Quality You Can Count On

Multiple payment options for secure shopping with SSL

Shop the Best Quality Online

Buy with Confidence, Get Quality

The Hayward SPX1607Z1M Pool Pump Motor is a C-Face Mount style motor with a 56J Frame and is a 1 Horsepower Motor. C-Frame motors have a round “face” where the motor mounts to the pump with 4 bolt holes to attach the pump and a threaded shaft.

Hayward SPX1607Z1M 1 HP Pump Motors are used on Hayward Super II, Hayward Super Pump and Hayward Max-Flo Pumps. This is a genuine Hayward replacement part.

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

IMPORTANT NOTE: Pumps and replacement motors that are single speed and one (1) HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. We recommend either a dual speed or variable speed pump for California residents.

Manufacturer	Hayward
Technical Specs	Horsepower: 1 HPVoltage: 115 / 230 VoltRPM: Single speed – 3450 RPMRotation: CCW at Pump EndMax Temp: 50 Degrees Celsius ambientWorks with the following pumps:Hayward Super PumpHayward Super IIHayward Max-Flo
SKU	HAY-101-9934
Manufacturer Part #	SPX1607Z1M
